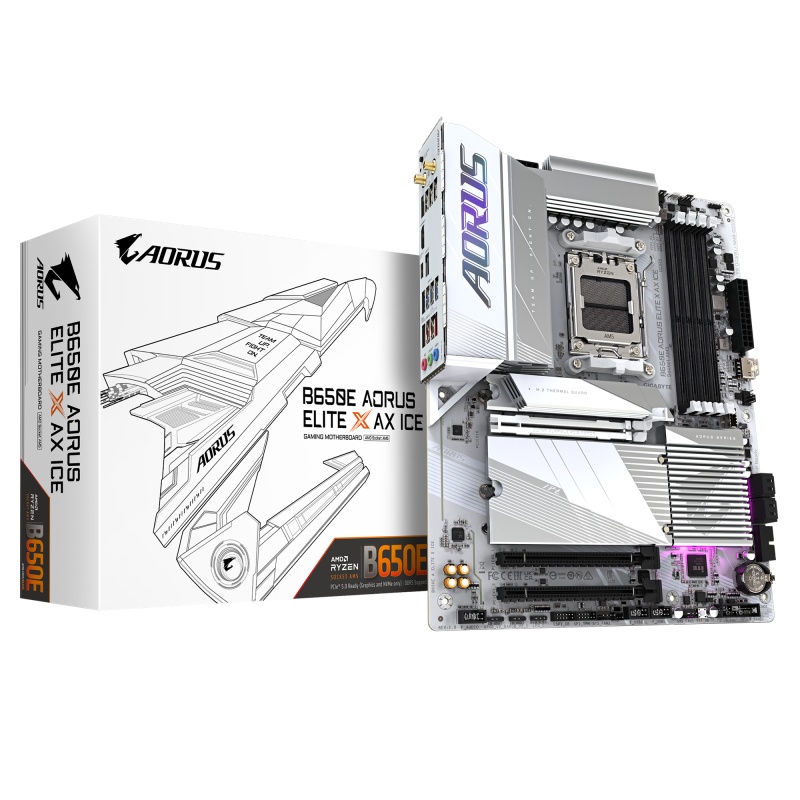

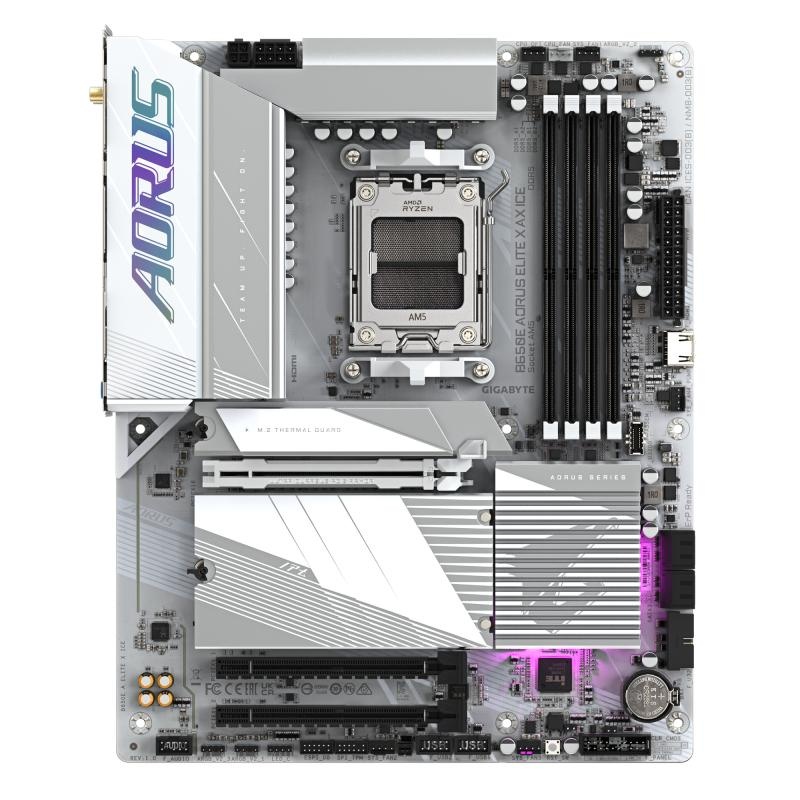

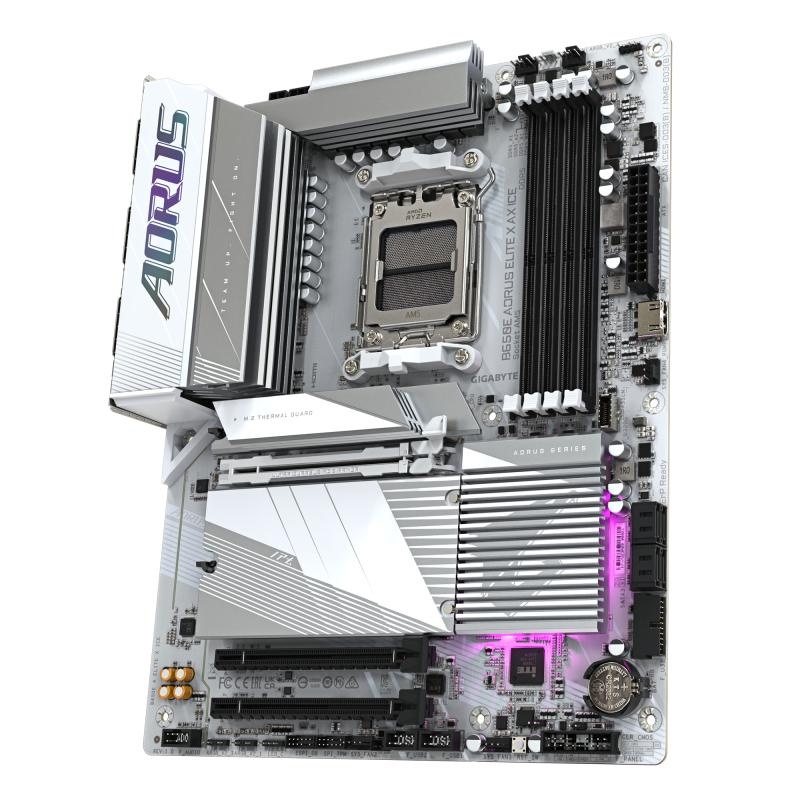

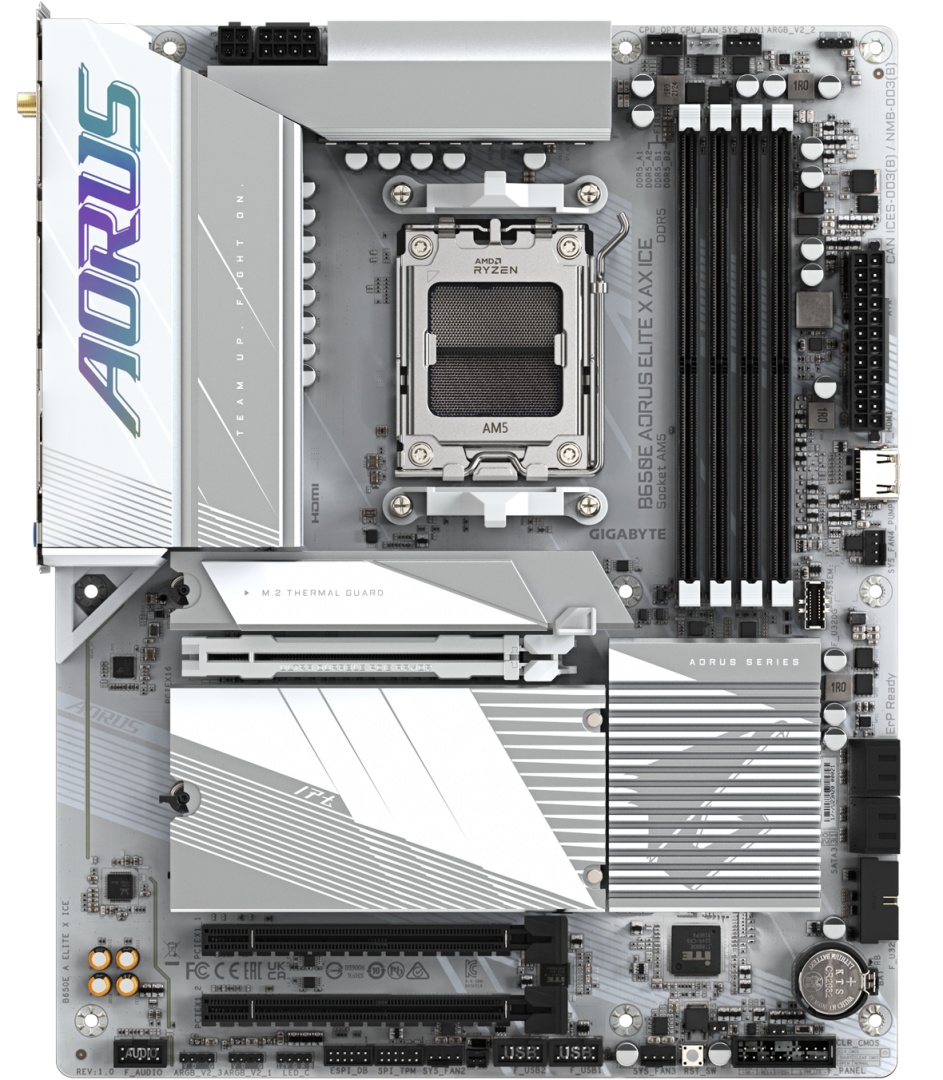

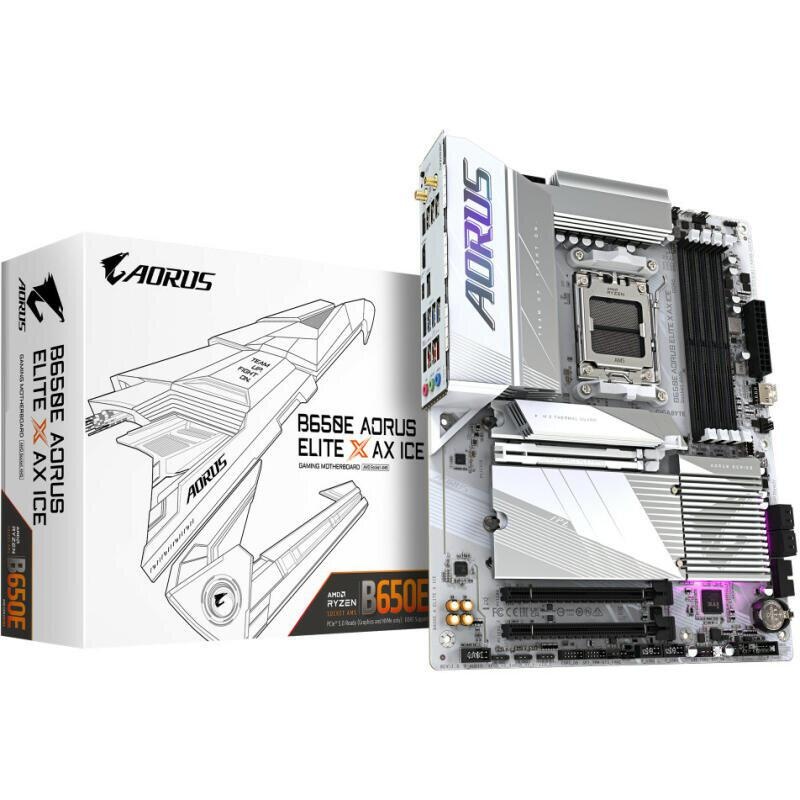

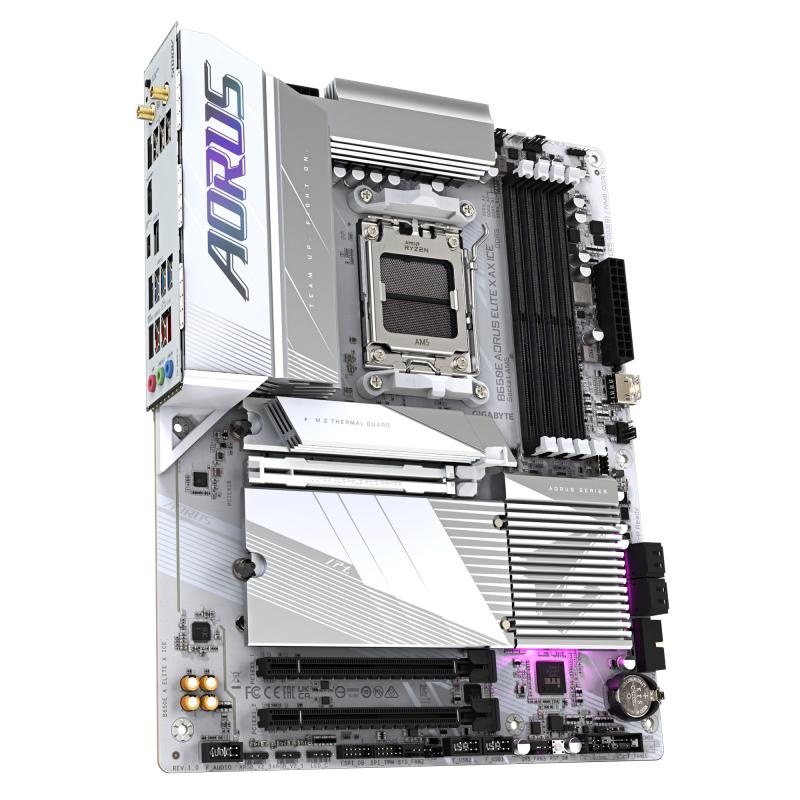

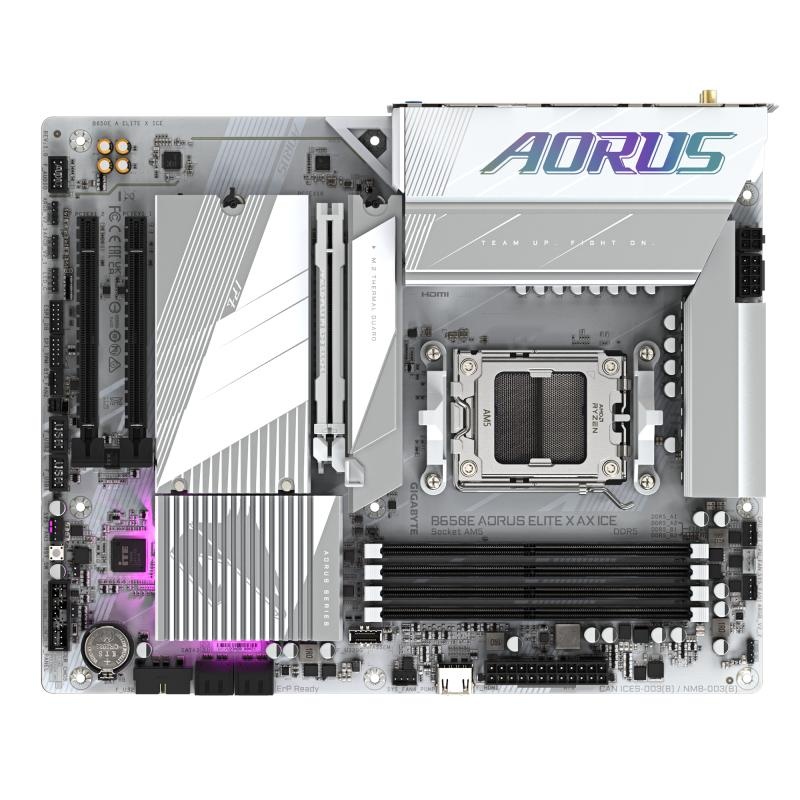

Placa de baza GIGABYTE B650E AORUS ELITE AX ICE AM5

1.555,99 RON (TVA inclus)
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Cod produs SKU B650E A ELITE X ICE
EAN 4719331860554
Produsul nu mai este disponibil in magazinul nostru.
Adauga la Favorite

Descriere

Placa de baza GIGABYTE B650E AORUS ELITE AX ICE AM5, 4x DDR5, 2x HDMI 1x USB TYPE-C, 3x PCIE x16, 3x M.2, 4x SATA 6gb/s, ATX

Detalii

SKU
B650E A ELITE X ICE
EAN
4719331860554
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Product colour
White
Component for
PC
Warranty period
3 year(s)
DisplayPort version
1.4
Memory channels
Dual-channel
Country of origin
China
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 2.0 ports quantity
4
Processor manufacturer
AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Microphone in
Yes
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard chipset
AMD B650
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Supported memory clock speed (max)
8000 MHz
USB 3.2 Gen 2x2 connectors
1
LAN controller
Realtek RTL8125
WLAN controller model
Realtek RTL8852CE
Discrete graphics support
Yes
Supported memory clock speeds
8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Package weight
2.45 kg
Number of HDDs supported
3
Garantie (luni)
36
