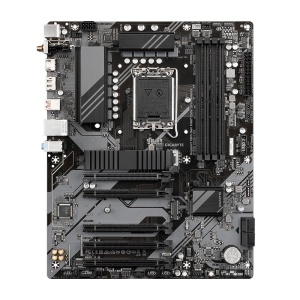

Placa de baza GIGABYTE B760 DS3H AX LGA1700

751,99 RON (TVA inclus) 1.008,17 RON pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Disponibil in stoc depozit 7
Cod produs SKU B760 DS3H AX
EAN 4719331852757
Livrare: curier 1-3 zile lucratoare
Adauga la Favorite

Descriere

Placa de baza GIGABYTE B760 DS3H AX LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, WIFI 6E, ATX

Detalii

SKU
B760 DS3H AX
EAN
4719331852757
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Package weight
1.34 kg
Component for
PC
Warranty period
3 year(s)
USB connector type
USB Type-A, USB Type-C
Ethernet interface type
Gigabit Ethernet
Memory channels
Dual-channel
Country of origin
China
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
Microphone in
Yes
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Product colour
Brown
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard chipset family
Intel
USB 2.0 connectors
2
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
DisplayPort version
1.2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
PS/2 ports quantity
1
Maximum internal memory
192 GB
Cables included
SATA
Maximum internal memory supported by processor
192 GB
Maximum resolution
4096 x 2304 pixels
WLAN controller model
Realtek RTL8852CE
Total number of SATA connectors
4
HDMI version
2.0
Motherboard chipset
Intel B760 Express
Bundled software
Norton Internet Security
Headphone outputs
3
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
PCI Express x16 slots
5
Garantie (luni)
36
