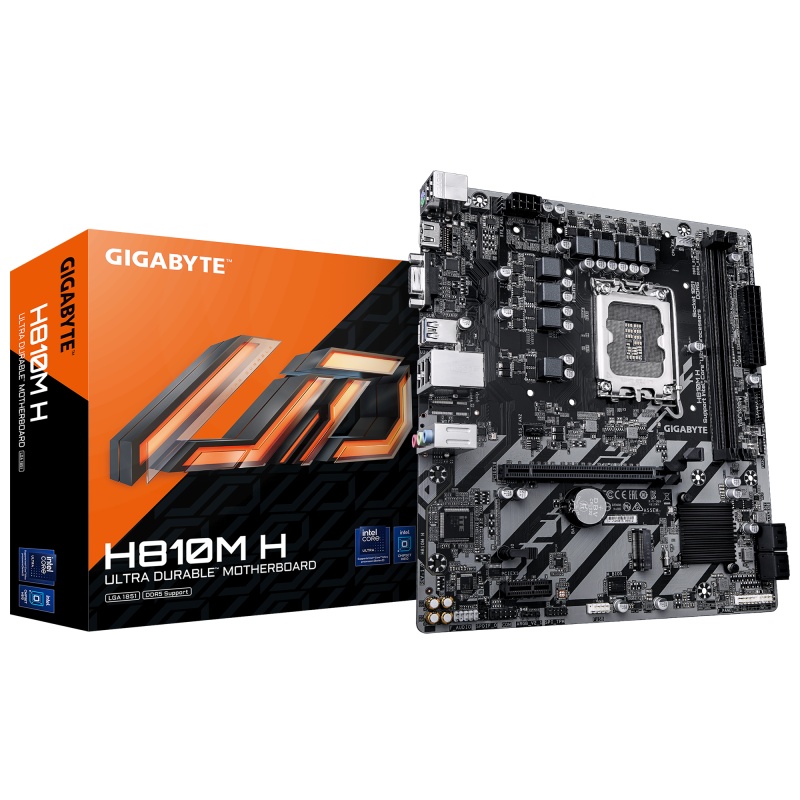

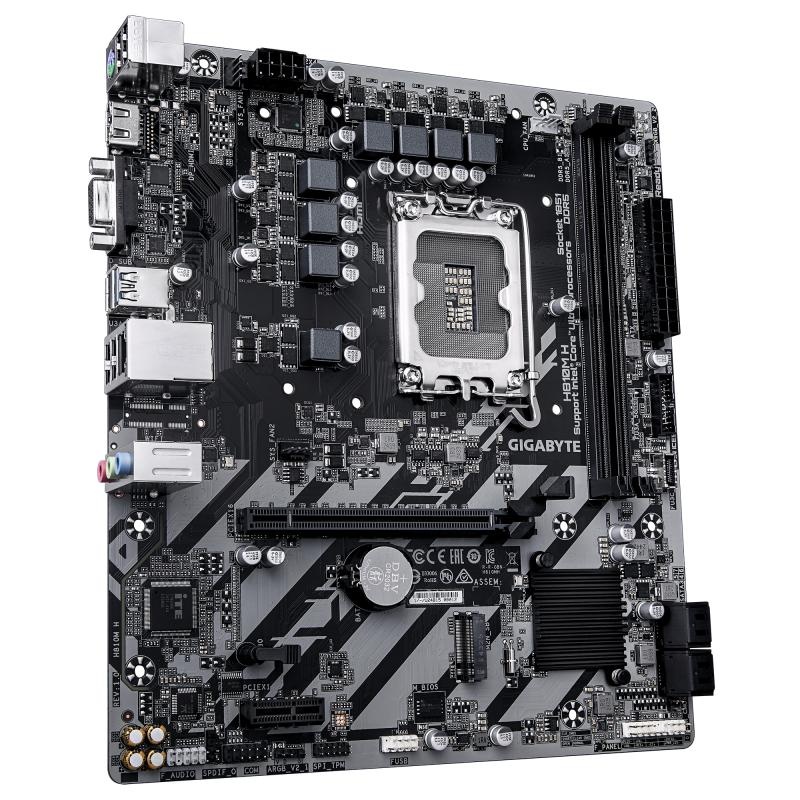

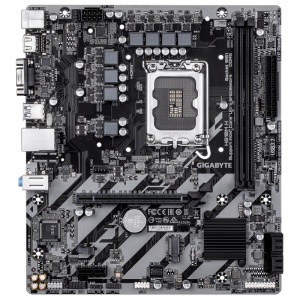

Placa de Baza GIGABYTE H810M H LGA1851, 2x DDR5, 1x HDMI 1x D-Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
518,99 RON
(TVA inclus)
587,58 RON
pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Descriere
Placa de Baza GIGABYTE H810M H LGA1851, 2x DDR5, 1x HDMI 1x D-Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
H810M H
EAN
4719331869540
Categorii
Brand
PCI
0
PCI-Ex1
1
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
1
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
Ethernet interface type
Gigabit Ethernet
Memory channels
Dual-channel
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Depth
215 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Maximum internal memory
128 GB
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
VGA (D-Sub) ports quantity
1
Microphone in
Yes
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Height
35 mm
Product colour
Dark brown
Cooling type
Passive
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of chassis fan connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Package depth
265 mm
Package height
54 mm
Package width
265 mm
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
RAM-Slots
2
Number of M.2 (M) slots
1
Motherboard chipset
Intel H810
Number of RGB LED pin headers
2
USB 2.0 connectors
1
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
5600,6400 MHz
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
USB 2.0 ports quantity
5
Number of storage drives supported
5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
MB-Socket
LGA1851
Weight
860 g
Package weight
860 g
Width
24.4 mm
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Produse recomandate
-
Placa de Baza ASUS PRIME H810M-A WIFI LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX718,99 RON 782,49 RON pret valabil pana la 01 oct.
-

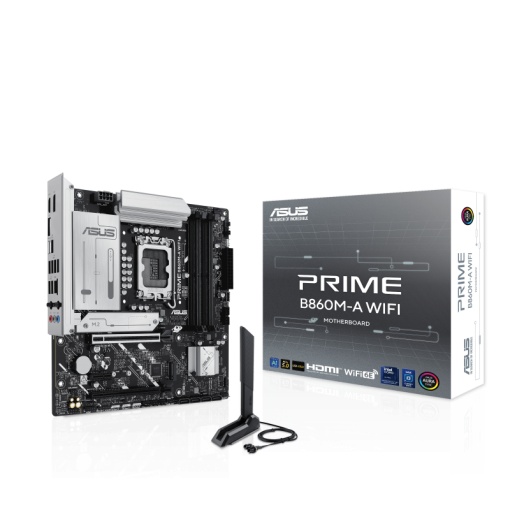

Placa de Baza ASUS PRIME B860M-A WIFI LGA1851, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX997,99 RON 1.201,37 RON pret valabil pana la 01 oct.
-
Placa de Baza ASUS PRIME B860M-K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX747,99 RON 796,73 RON pret valabil pana la 01 oct.
-
Placa de Baza ASROCK PHANTOM GAMING B850I LIGHTNING WIFI AM5, 2x DDR5, 1x HDMI 1x USB 3.2 Type-c, 1x PCIE 5.0 x16, 3x M.2, 2x SATA 6GB/s, Mini- ITX1.111,99 RON 1.282,86 RON pret valabil pana la 01 oct.
-
Placa de Baza GIGABYTE H810M S2H LGA1851, 2x DDR5, 1x HDMI 1x DP 1x D- Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX510,99 RON 605,53 RON pret valabil pana la 01 oct.
-
Placa de Baza GIGABYTE H810M GAMING WIFI6 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX637,99 RON 764,48 RON pret valabil pana la 01 oct.
-
Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX497,99 RON 569,91 RON pret valabil pana la 01 oct.
-
Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4, 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX414,99 RON 463,05 RON pret valabil pana la 01 oct.
-

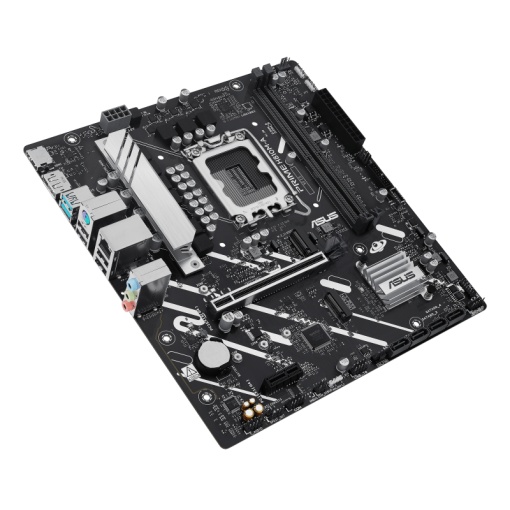

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX765,99 RON 822,94 RON pret valabil pana la 01 oct.
-

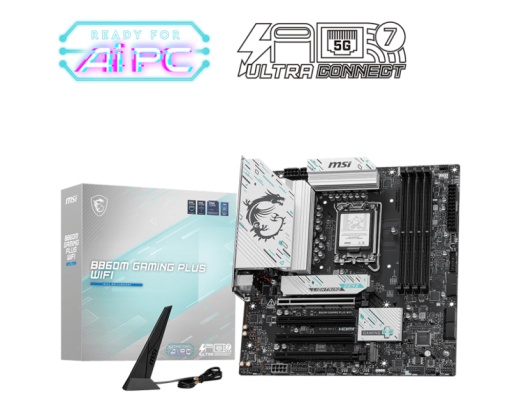

Placa de Baza MSI B860M GAMING PLUS WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Type-C DP, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, mATX1.038,99 RON 1.130,13 RON pret valabil pana la 01 oct.
