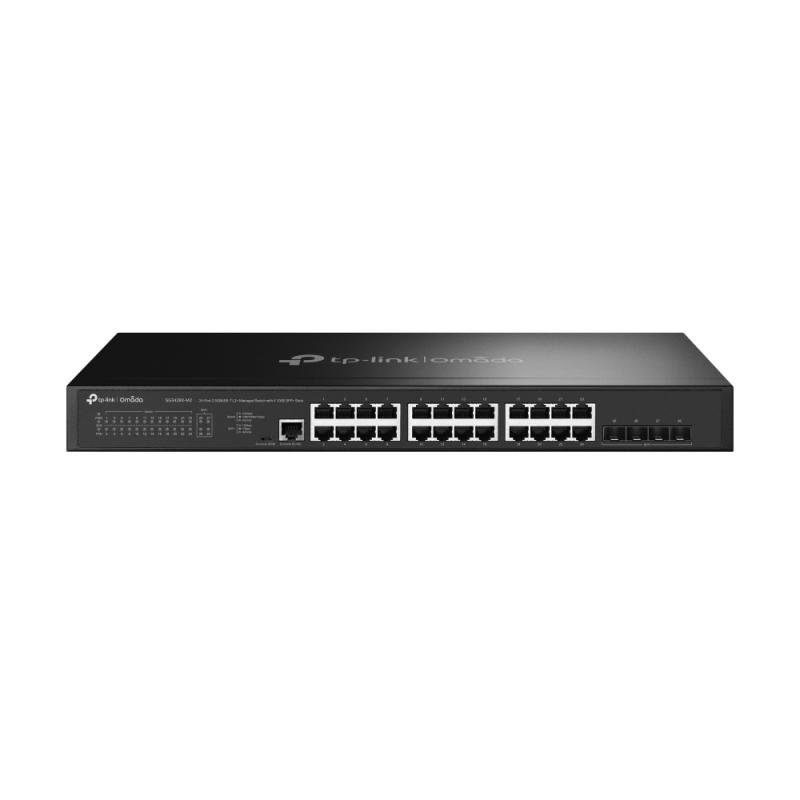

"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static
2.509,99 RON
(TVA inclus)
3.873,36 RON
pret valabil pana la 29 sept.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Descriere
"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Detalii
SKU
TL-SG3428X-M2
EAN
4897098689745
Categorii
Brand
LAN-Port-Type
Gigabit
LED indicators
Yes
Product colour
Black
Operating temperature (T-T)
0 - 40 C
Storage temperature (T-T)
-40 - 70 C
Quick start guide
Yes
Number of fans
1 fan(s)
Operating relative humidity (H-H)
10 - 90%
Certification
CE/FCC/RoHS
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Jumbo frames support
Yes
MAC address table
32000 entries
Rack mounting
Yes
Quality of Service (QoS) support
Yes
ARP inspection
Yes
Switch type
Managed
10G support
Yes
Power source
AC
Power supply included
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP snooping
Yes
Static route
Yes
Store-and-forward
Yes
Form factor
1U
Flow control support
Yes
VLAN support
Yes
Web-based management
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Link aggregation
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Multicast support
Yes
Installed SFP+ modules quantity
0
Access Control List (ACL)
Yes
Width
440 mm
Depth
180 mm
Configuring Location Settings (CLI)
Yes
SSH/SSL support
Yes
Power connector
AC-in jack
Jumbo frames
9000
Port mirroring
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Rate limiting
Yes
System event log
Yes
Broadcast storm control
Yes
Power over Ethernet (PoE)
No
IP-MAC-Port binding
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Cables included
LAN (RJ-45)
Switch layer
L2+
Cloud-managed
Yes
SFP module slots quantity
4
Console port
RJ-45/Micro-USB
Number of static routes
48
Multicast Listener Discovery (MLD) snooping
Y
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Policy-based routing
Yes
Packet buffer memory
16 MB
Switching capacity
200 Gbit/s
Forwarding rate
148.8 Mpps
Networking standards
IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
MIB support
Yes
IPv4 routes
48
IPv6 routes
48
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Active link detection
Yes
Heat dissipation
154.38 BTU/h
SFP+ module slots quantity
4
2.5G Ethernet (copper) ports quantity
24
Power consumption (max)
45.1 W
IPv4 FIB entries
100
IPv6 FIB entries
100
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols
SNMP v1/v2c/v3, SNTP
Authentication type
AAA, RADIUS, TACACS+
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
