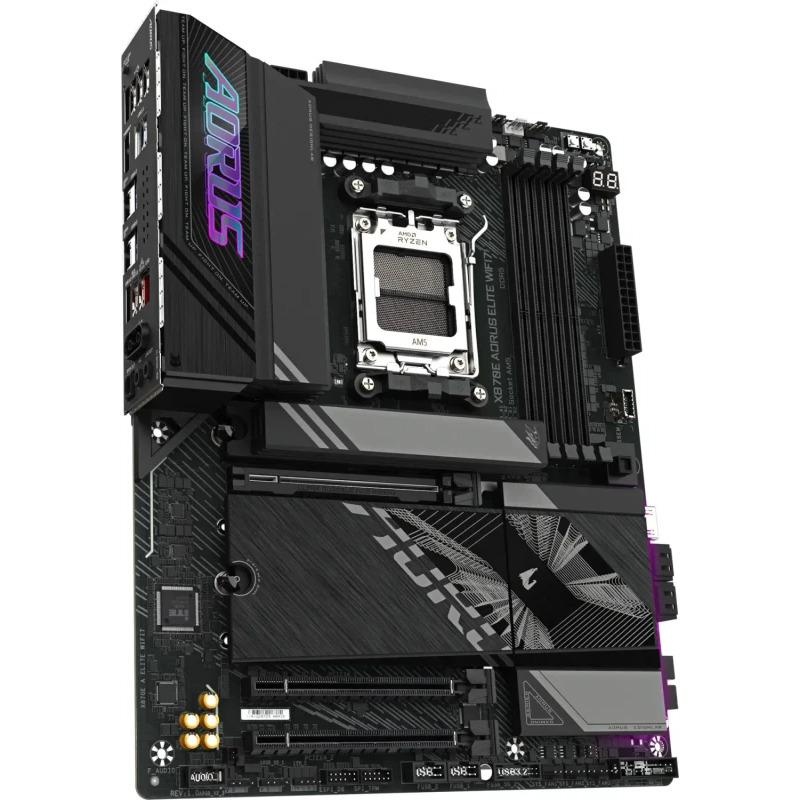

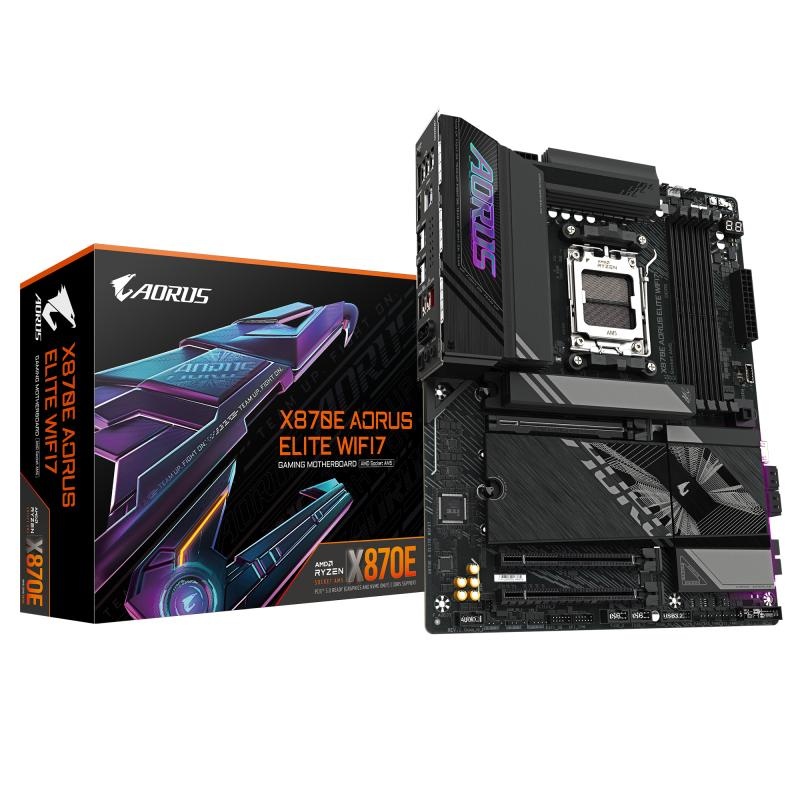

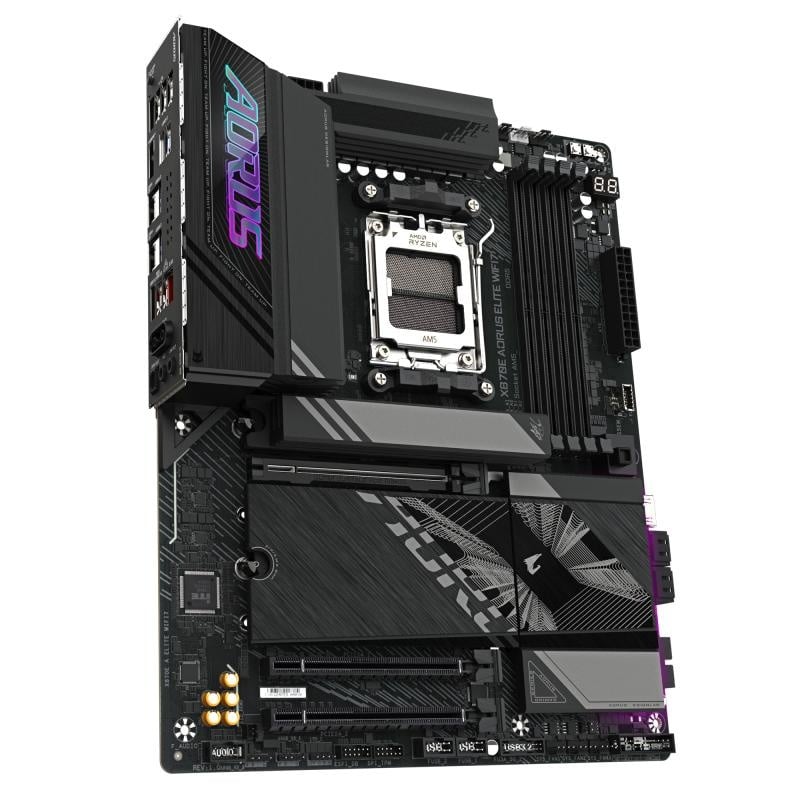

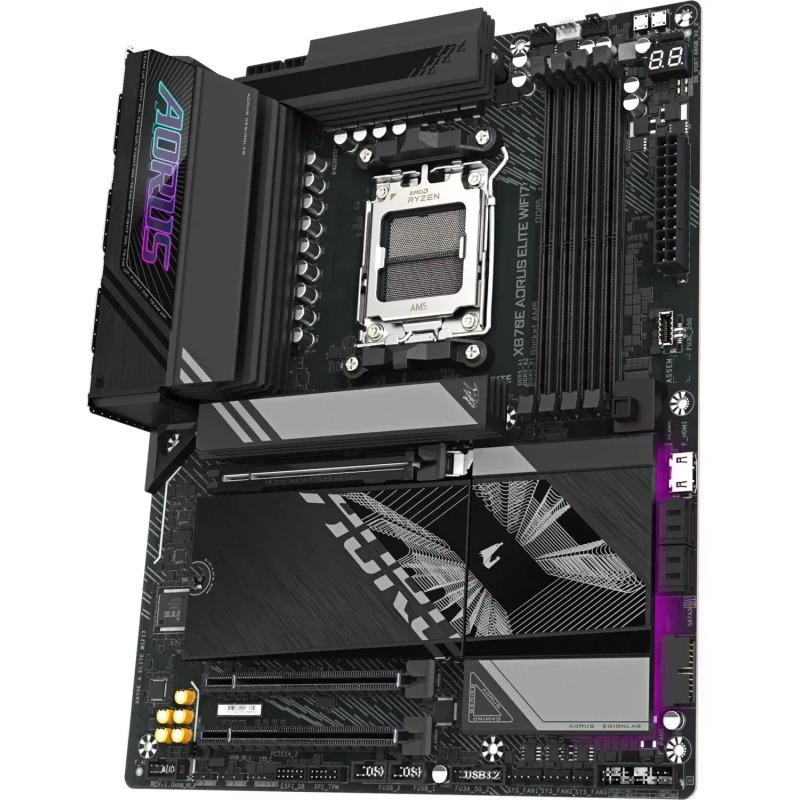

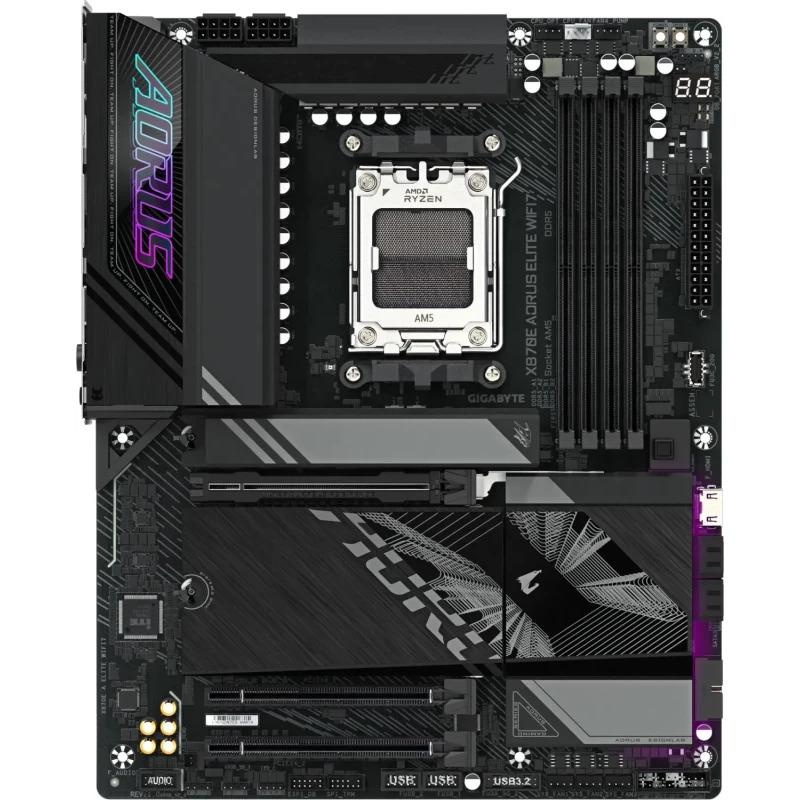

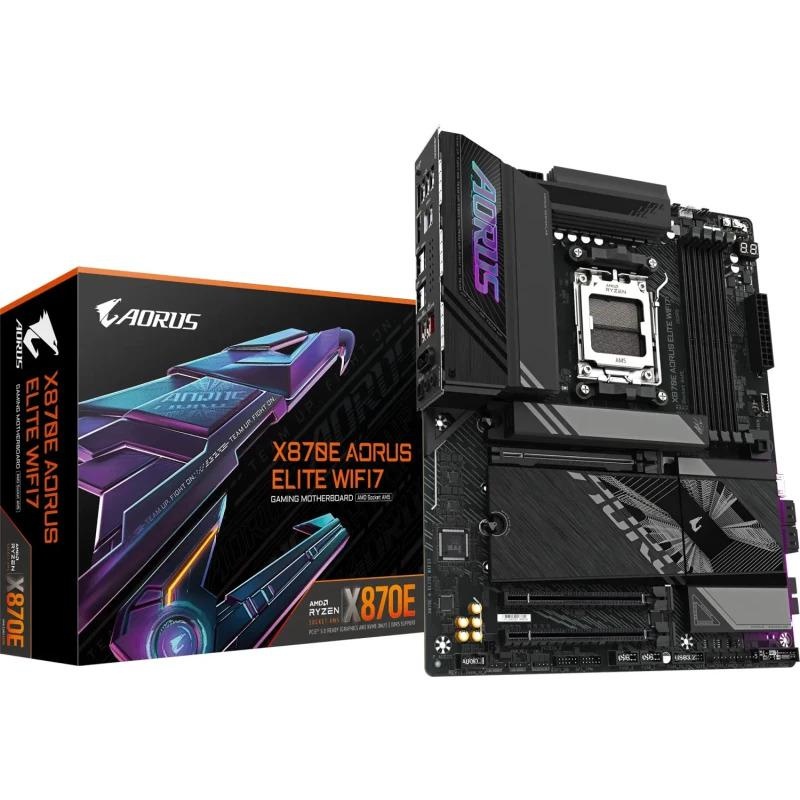

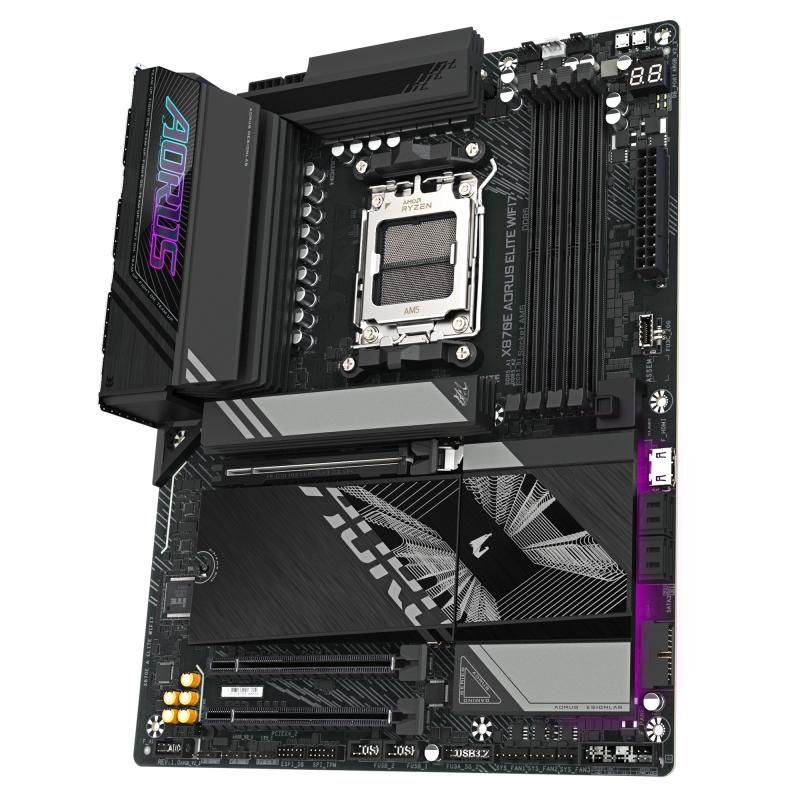

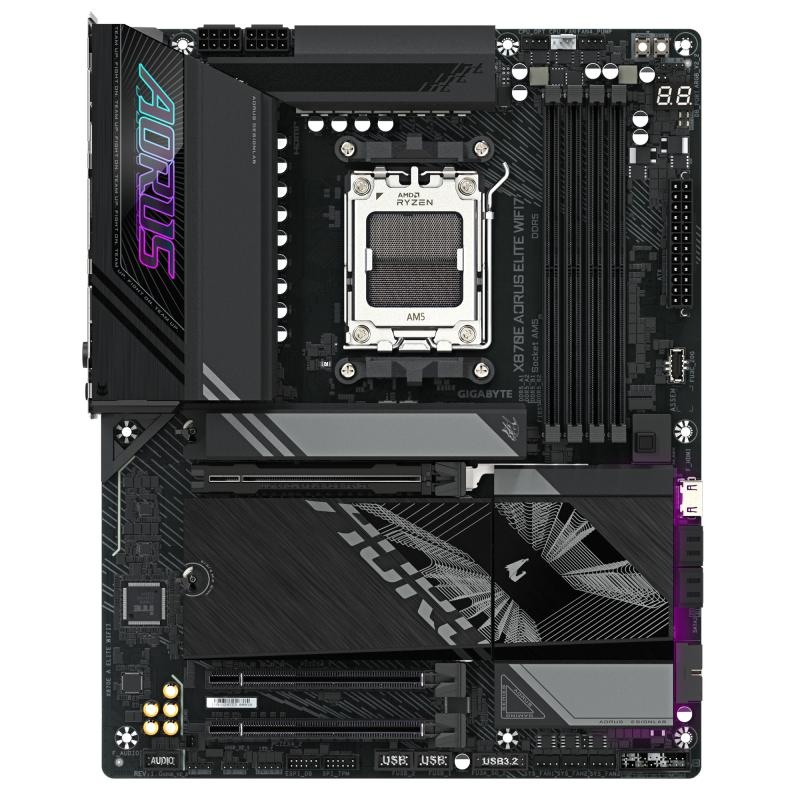

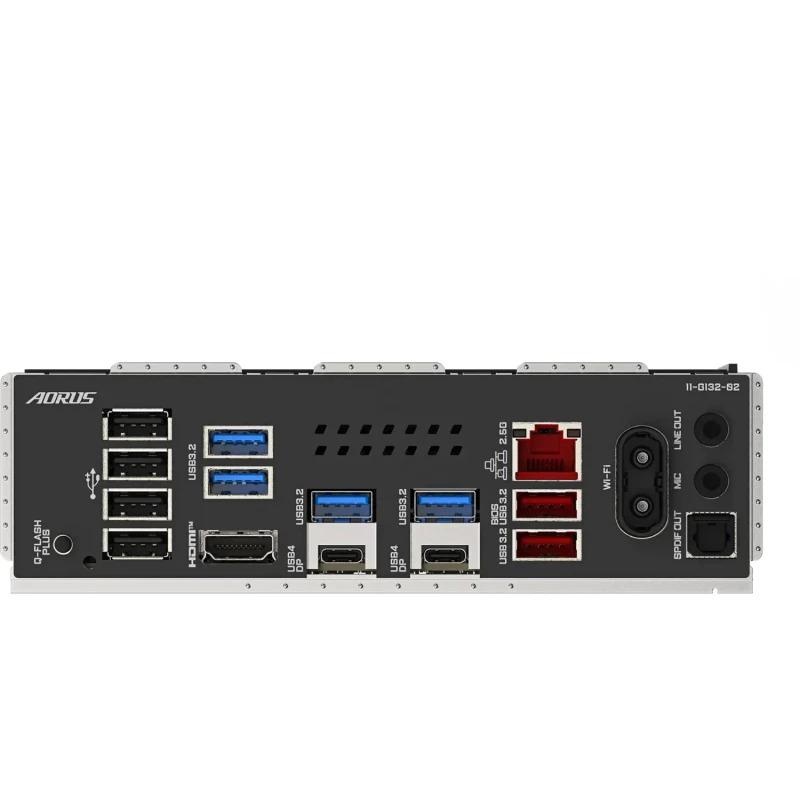

MB GIGABYTE X870E AORUS ELITE WIFI7

1.908,99 RON (TVA inclus)
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Cod produs SKU X870E A ELITE WIFI7
EAN 4719331864613
Produsul nu mai este disponibil in magazinul nostru.
Adauga la Favorite

Descriere

Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 AM5, 4x DDR5, 1X HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

Detalii

SKU
X870E A ELITE WIFI7
EAN
4719331864613
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
3
PCI-Ex1
0
Wi-Fi
Yes
Onboard-CPU
No
Product colour
Black
Component for
PC
Warranty period
3 year(s)
DisplayPort version
1.4
Memory channels
Dual-channel
Country of origin
China
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
PCI Express x16 (Gen 5.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2x2 Type-C ports quantity
0
Processor manufacturer
AMD
Weight
2.4 kg
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Microphone in
Yes
Headphone outputs
1
USB4 Gen 3x2 ports quantity
0
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
Motherboard form factor
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Antenna included
Yes
Screws included
Yes
Package height
80 mm
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB 2.0 connectors
2
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
On-board graphics card
No
2nd M.2 highest PCI Express generation
5.0
Audio Chip
Realtek ALC1220
USB 3.2 Gen 2x2 connectors
1
PCI Express x16 (Gen 3.x) slots
1
Number of EPS power connectors (8-pin)
2
LAN controller
Realtek RTL8125
Windows operating systems supported
Windows 11 x64
Supported memory clock speed (max)
8200 MHz
Maximum internal memory supported by processor
256 GB
PC health monitoring
CPU, Fan, Temperature, Voltage
4th M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
4
Number of storage drives supported
8
Motherboard chipset
AMD X870E
S/PDIF out port
Yes
WLAN controller model
MediaTek MT7925
Package width
345 mm
USB4 Gen 2x2 ports quantity
2
PCI Express x4 slots
2
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
PCI Express x4 (Gen 3.x) slots
0
DisplayPorts quantity
0
PS/2 ports quantity
0
Package depth
294 mm
PCI Express x1 (Gen 3.x) slots
0
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Package weight
2.74 kg
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Garantie (luni)
36
