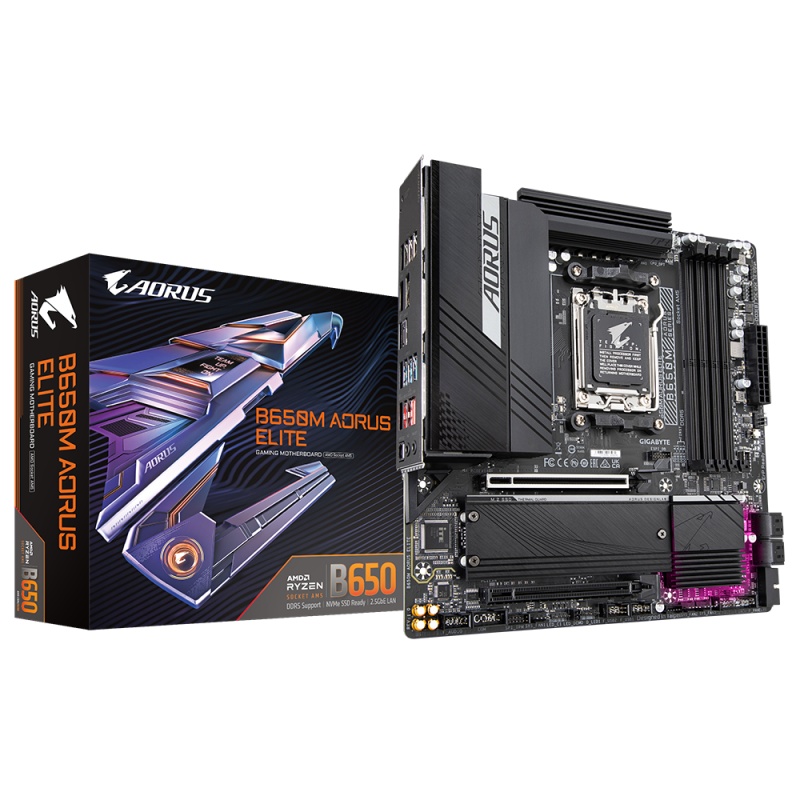

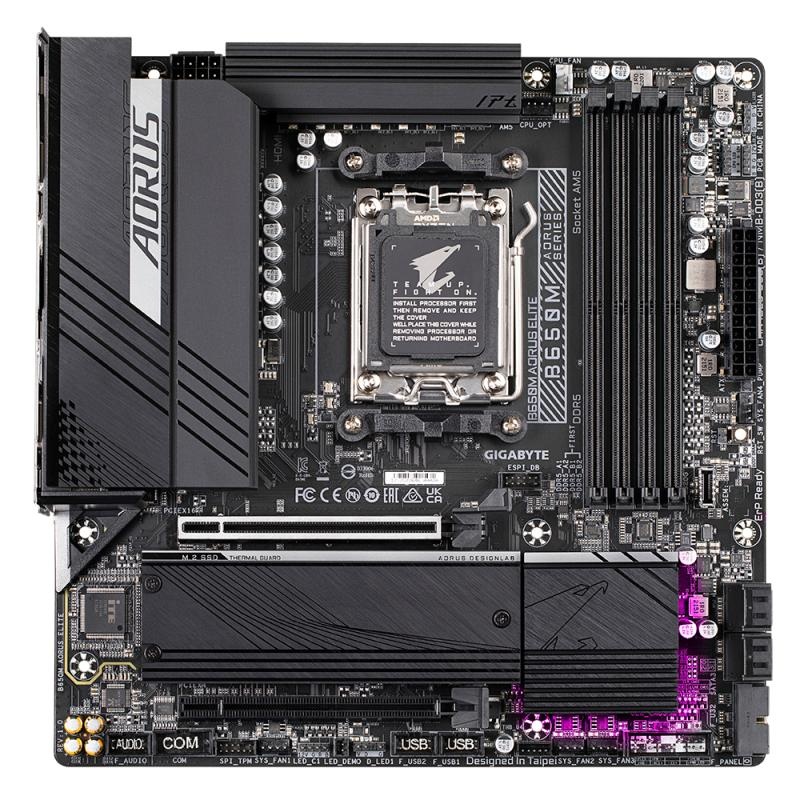

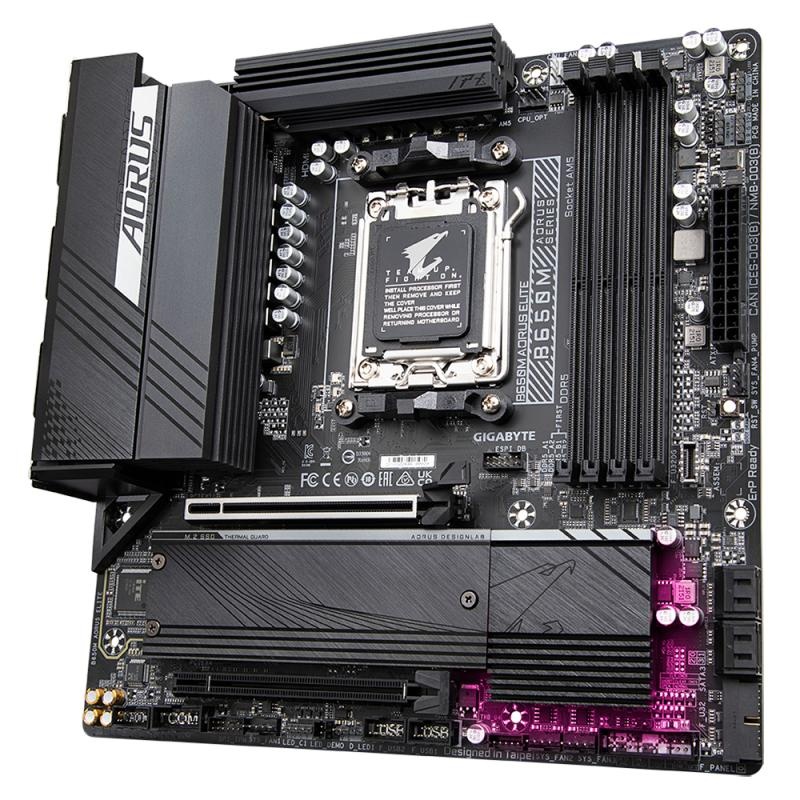

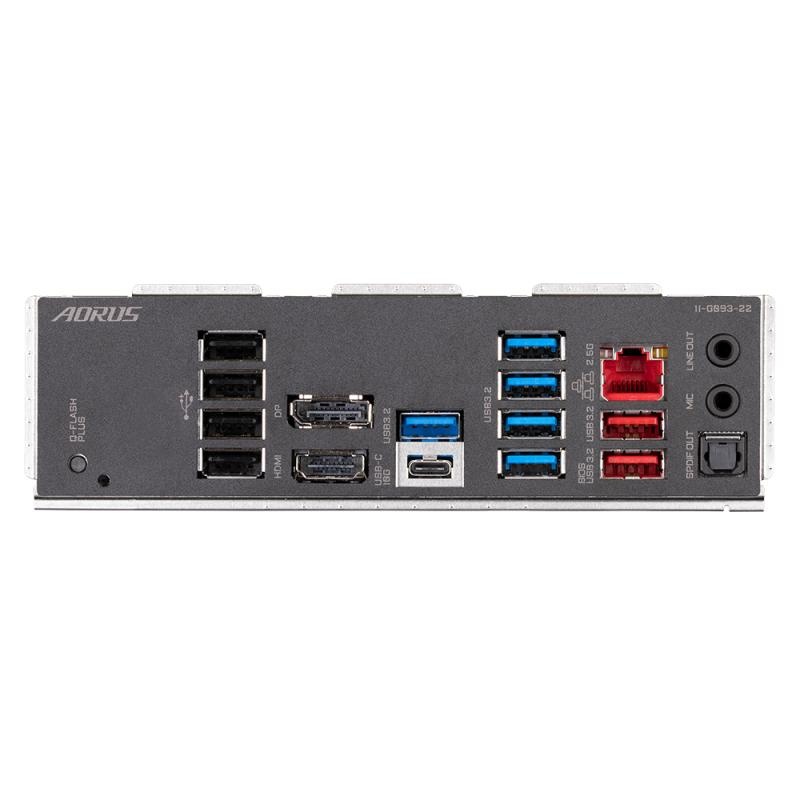

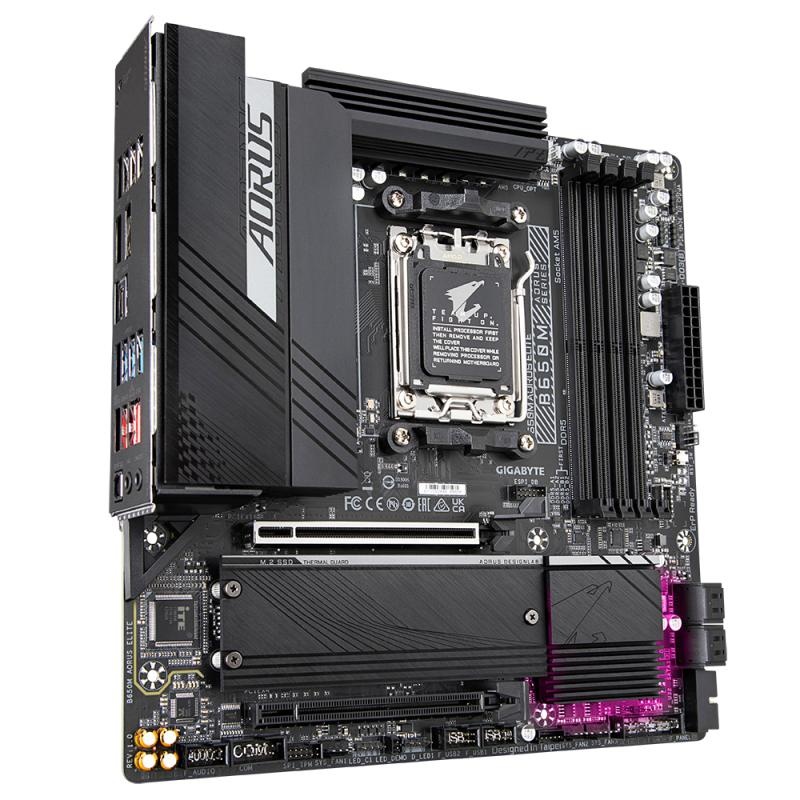

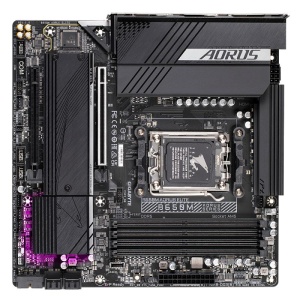

Placa de Baza GIGABYTE B650M AORUS ELITE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
834,99 RON
(TVA inclus)
918,60 RON
pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Descriere
Placa de Baza GIGABYTE B650M AORUS ELITE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B650M AORUS ELITE
EAN
4719331849818
Categorii
Brand
PCI
0
PCI-Ex16
2
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex1
0
Wi-Fi
No
Onboard-CPU
No
Product colour
Black
Component for
PC
Warranty period
3 year(s)
DisplayPort version
1.4
Memory channels
Dual-channel
Country of origin
China
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Weight
1.66 kg
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
DisplayPorts quantity
1
USB 2.0 ports quantity
4
Processor manufacturer
AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
Motherboard chipset
AMD B650
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
Cooling type
Passive
Number of M.2 (M) slots
2
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of storage drives supported
6
MB-Format
micro-ATX
Width
244 mm
Number of RGB LED pin headers
5
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Thunderbolt headers
1
Supported memory clock speed (max)
8000 MHz
Package height
68 mm
USB 3.2 Gen 2x2 connectors
1
LAN controller
Realtek RTL8125
Package width
270 mm
Package depth
268 mm
S/PDIF out port
Yes
PCI Express x16 (Gen 4.x) slots
2
Supported memory clock speeds
8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Package weight
1.9 kg
