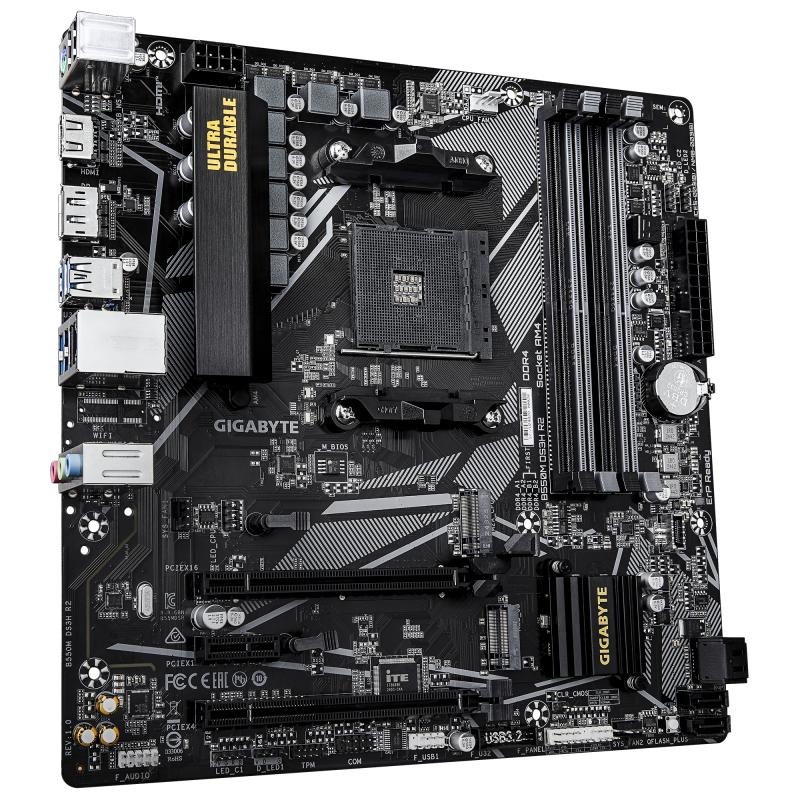

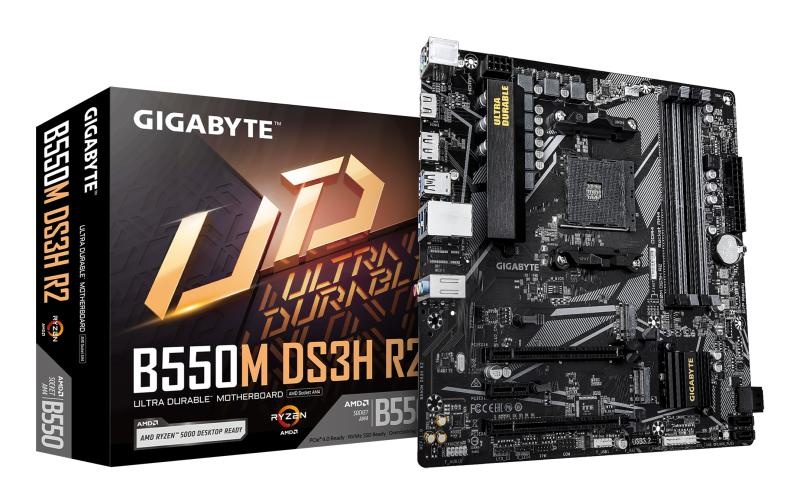

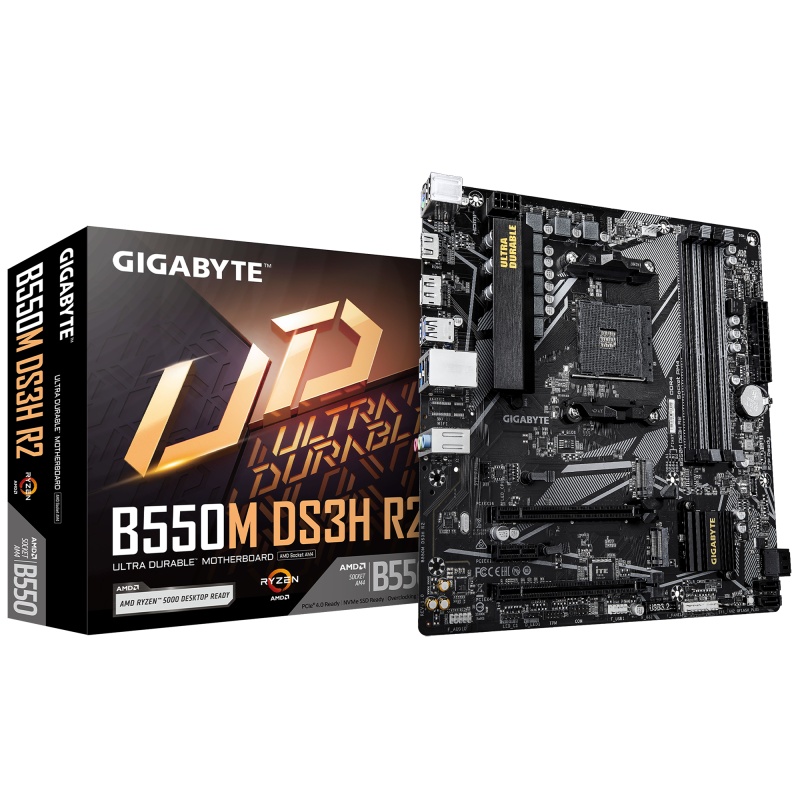

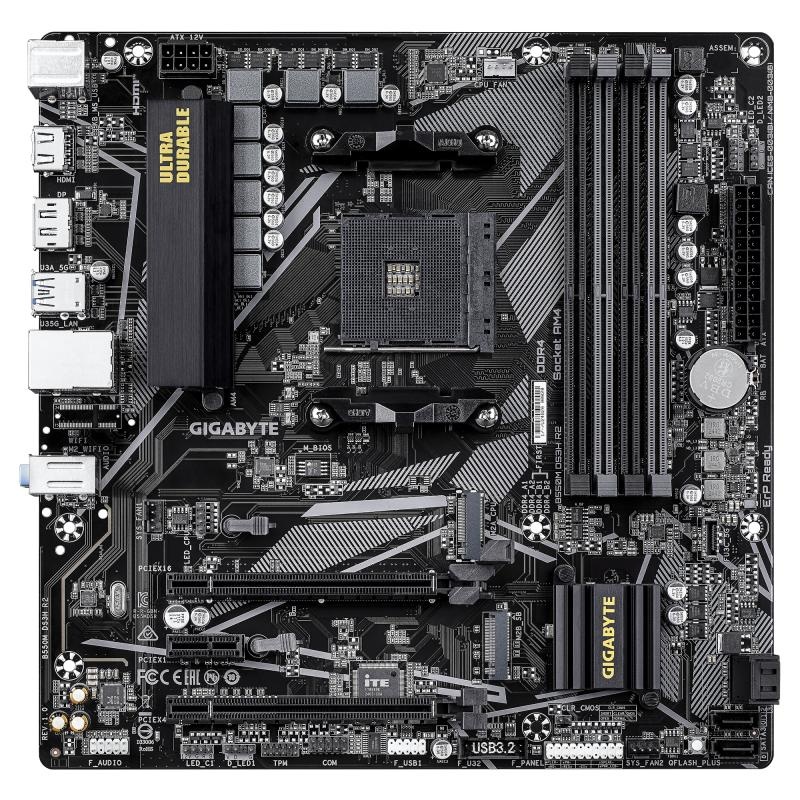

Placa de Baza GIGABYTE B550M DS3H R2 AM4, 4x DDR4, 1x DP 1x HDMI, 2x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
453,99 RON
(TVA inclus)
515,83 RON
pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Descriere
Placa de Baza GIGABYTE B550M DS3H R2 AM4, 4x DDR4, 1x DP 1x HDMI, 2x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B550M DS3H R2
EAN
4719331870454
Categorii
Brand
PCI
0
PCI-Ex1
1
PCI-Ex16
2
Serial-or-Paralel
No/No
USB3
4-8
Wi-Fi
No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
Ethernet interface type
Gigabit Ethernet
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Maximum internal memory
128 GB
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Processor manufacturer
AMD
USB 2.0 ports quantity
2
Microphone in
Yes
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included
Yes
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
RAM-Slots
4
BIOS memory size
128 Mbit
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of CPU fan connectors
1
ECC сompatibility
ECC & Non-ECC
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of storage drives supported
6
MB-Format
micro-ATX
USB 2.0 connectors
1
PS/2 ports quantity
1
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD B550
Number of RGB LED pin headers
5
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
PCI Express x16 (Gen 3.x) slots
1
PC health monitoring
Fan, Temperature, Voltage
Maximum resolution
5120 x 2880 pixels
MB-Socket
AM4
Audio Chip
Realtek ALC1220-VB
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Weight
870 g
Package weight
947 g
Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
