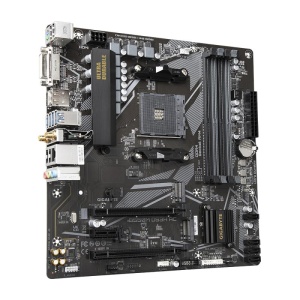

Placa de baza Gigabyte B550M DS3H AC AM4

500,99 RON (TVA inclus) 658,85 RON pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Disponibil in stoc depozit 8
Cod produs SKU B550M DS3H AC
EAN 4719331810962
Livrare: curier 1-3 zile lucratoare
Adauga la Favorite

Descriere

Placa de baza Gigabyte B550M DS3H AC AM4 DDR4, 4x sloturi RAM, max. 128GB, frecventa maxima suportata 4733MHz, 1x DVI-D, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX

Detalii

SKU
B550M DS3H AC
EAN
4719331810962
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
Ethernet interface type
Gigabit Ethernet
DisplayPort version
1.4
Memory channels
Dual-channel
Country of origin
China
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPorts quantity
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Processor manufacturer
AMD
Microphone in
Yes
Headphone outputs
1
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Bluetooth version
4.2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Product colour
Brown
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
HDCP
Yes
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Cooling type
Passive
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
USB 2.0 connectors
1
PS/2 ports quantity
1
Motherboard chipset
AMD B550
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
On-board graphics card
No
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Package height
68 mm
Package weight
1.09 kg
Package width
270 mm
Package depth
268 mm
Total number of SATA connectors
4
PC health monitoring
CPU, Fan, Temperature, Voltage
PCI Express x1 slots
1
Parallel connector
Yes
DVI-D ports quantity
1
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
PCI Express x16 slots
1
Audio connector
Yes
Power fan connector
Yes
Maximum internal memory supported by processor
128 GB
USB connector type
USB Type-A
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory clock speed (max)
4733 MHz
Bundled software
Norton Internet Security LAN bandwidth management software
PCI Express x4 slots
1
Number of Parallel ATA connectors
1
Digital audio optical out
3
Supported memory module capacities
4GB, 8GB, 16GB, 32GB
Width
24.4 mm
Compatible operating systems
Windows 10 64-bit
WLAN controller model
Realtek RTL8822CE
Garantie (luni)
36
