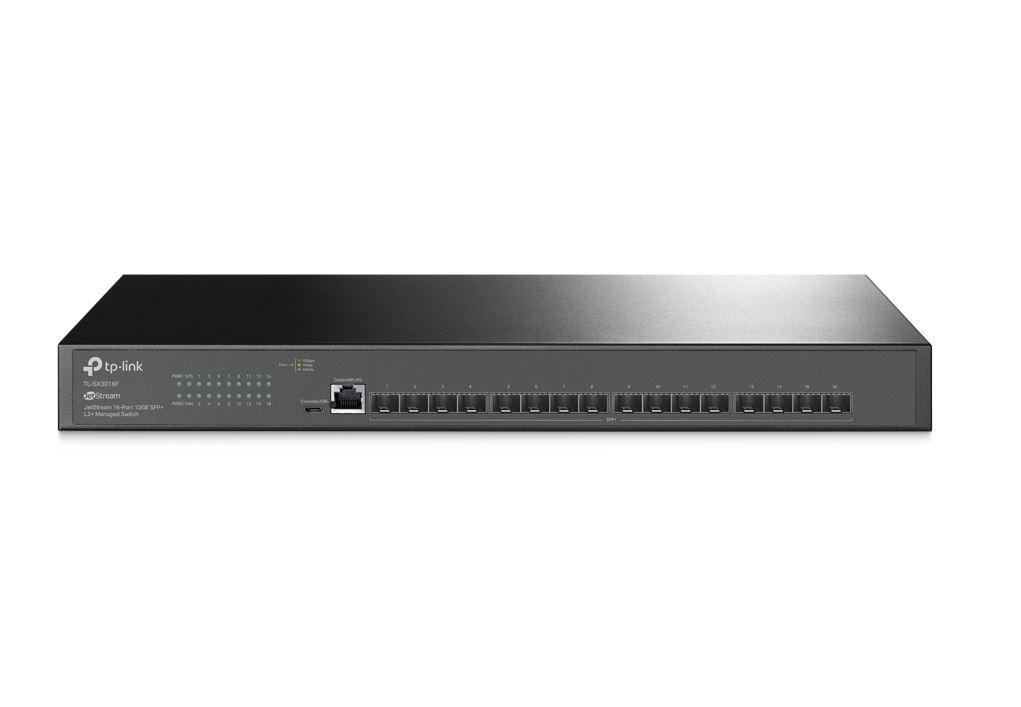

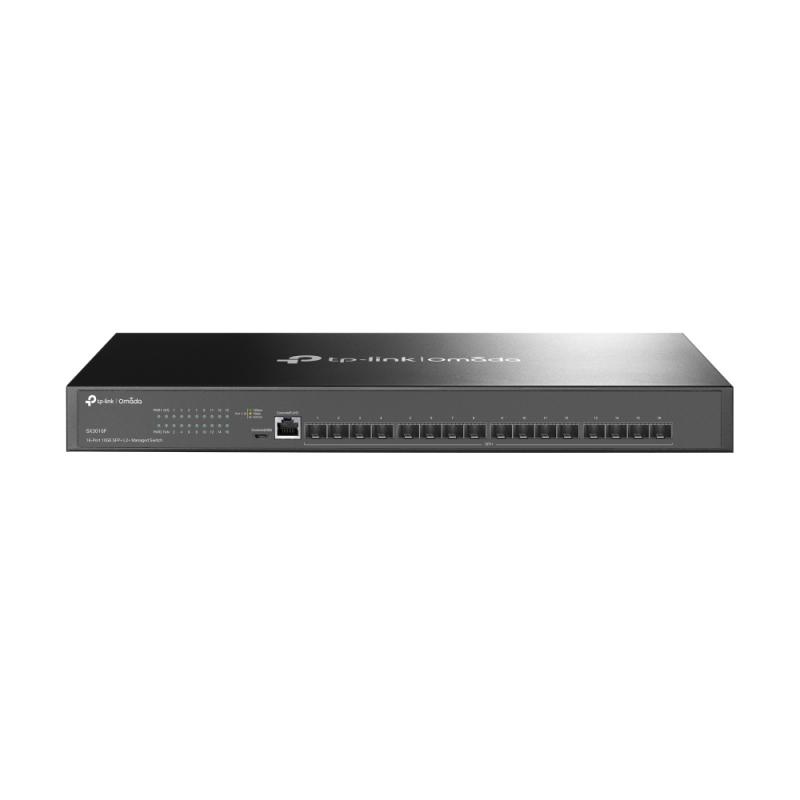

"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ,
2.807,99 RON
(TVA inclus)
4.432,67 RON
pret valabil pana la 29 sept.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Descriere
"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies"
Detalii
SKU
TL-SX3016F
EAN
6935364006433
Categorii
Brand
LAN port type
10Gigabit
LED indicators
Yes
Product colour
Black
Package type
Box
Storage temperature (T-T)
-40 - 70 C
Quick start guide
Yes
Operating temperature (T-T)
0 - 45 C
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Height
44 mm
Storage relative humidity (H-H)
5 - 90%
Depth
220 mm
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Jumbo frames support
Yes
MAC address table
32000 entries
Rack mounting
Yes
Quality of Service (QoS) support
Yes
ARP inspection
Yes
Switch type
Managed
10G support
Yes
Power source
AC
Power supply included
Yes
IGMP snooping
Yes
Static route
Yes
Flow control support
Yes
VLAN support
Yes
Web-based management
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Link aggregation
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Multicast support
Yes
Installed SFP+ modules quantity
0
Access Control List (ACL)
Yes
Width
440 mm
Configuring Location Settings (CLI)
Yes
IP routing
Yes
SSH/SSL support
Yes
Power connector
DC-in jack
Traffic classification
Yes
Jumbo frames
9000
Port mirroring
Yes
Static port security
Yes
MAC address filtering
Yes
Rate limiting
Yes
System event log
Yes
Broadcast storm control
Yes
Power over Ethernet (PoE)
No
Rack mount kit
Yes
IP-MAC-Port binding
Yes
Cloud-managed
Yes
Console port
RJ-45/Micro-USB
Number of VLANs
4000
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (MLD) snooping
Y
Management protocols
SNMPv1/v2c/v3, SNTP
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Basic switching RJ-45 Ethernet ports type
No
Switching capacity
320 Gbit/s
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of queues
8
Switch layer
L2+/L3
SFP+ module slots quantity
16
Basic switching RJ-45 Ethernet ports quantity
0
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Forwarding rate
238.08 Mpps
Packet buffer memory
24 MB
Heat dissipation
111.71 BTU/h
SFP module slots quantity
16
Power consumption (max)
32.74 W
Certification
CE, FCC, RoHS
Installed SFP modules quantity
0
