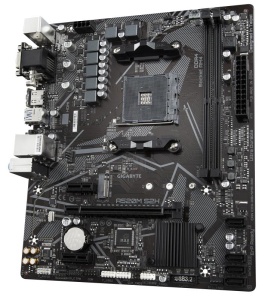

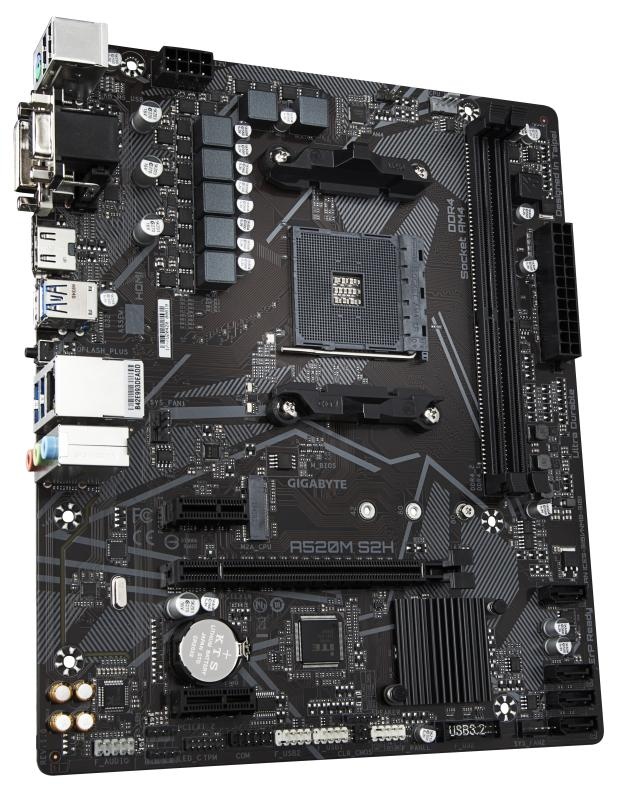

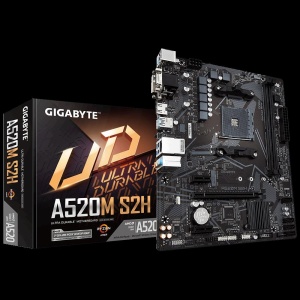

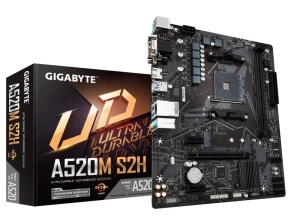

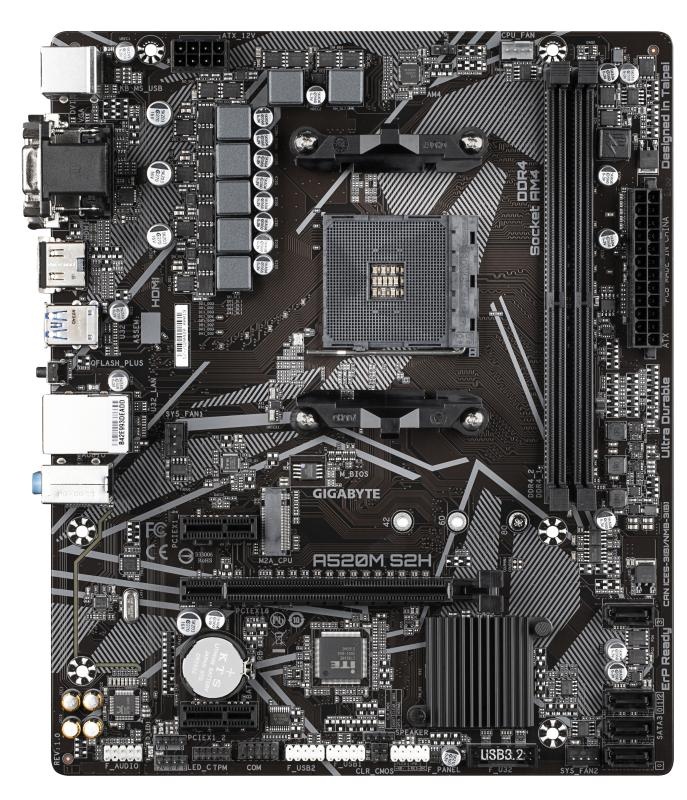

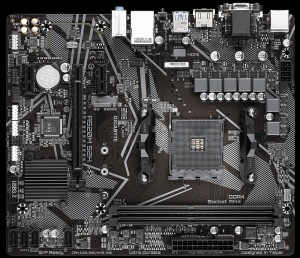

Placa de baza Gigabyte A520M S2H, Socket AM4

Name: Placa de baza Gigabyte A520M S2H, Socket AM4
Brand: GIGABYTE
SKU: A520M S2H
Price: 293.99 RON
Availability: InStock

293^,99 RON (TVA inclus) 347^,53 RON pret valabil pana la 01 oct.

Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!

Descriere

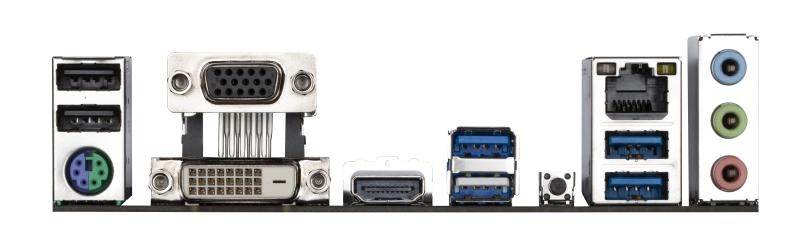

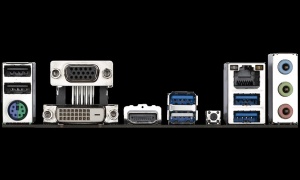

Placa de baza Gigabyte AMD A520M S2H AM4 CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10/sp#sp

Detalii

SKU

A520M S2H

EAN

4719331809720

Categorii

Placi de baza

Brand

GIGABYTE

CPU încorporat

PCI

Serial-or-Paralel

No/No

Component for

Warranty period

3 year(s)

Harmonized System (HS) code

84733020

Memory channels

Dual-channel

Country of origin

China

Maximum internal memory

64 GB

Ethernet LAN

Yes

HDMI ports quantity

Ethernet LAN (RJ-45) ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

VGA (D-Sub) ports quantity

Package depth

235 mm

Processor manufacturer

AMD

USB 2.0 ports quantity

Products per shipping (inner) case

1 pc(s)

Batteries included

Yes

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Motherboard chipset family

AMD

Audio output channels

7.1 channels

HDCP

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

Number of SATA III connectors

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Memory slots type

DIMM

RAID support

Yes

RAID levels

0, 1, 10

Height

35 mm

BIOS memory size

128 Mbit

Motherboard form factor

micro ATX

USB 2.0 connectors

USB 3.2 Gen 1 (3.1 Gen 1) connectors

Number of chassis fan connectors

Number of memory slots

ECC сompatibility

ECC & Non-ECC

Package width

265 mm

PS/2 ports quantity

Supported memory types

DDR4-SDRAM

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

Maximum number of SMP processors

Number of SATA II connectors

DVI-D ports quantity

Motherboard chipset

AMD A520

Power fan connector

Yes

Package height

52 mm

Maximum internal memory supported by processor

64 GB

Compatible processor series

AMD Ryzen 3000 Series

Supported memory clock speeds

2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz

Package weight

740 g

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA

Width

24.4 mm

Depth

20.5 mm
