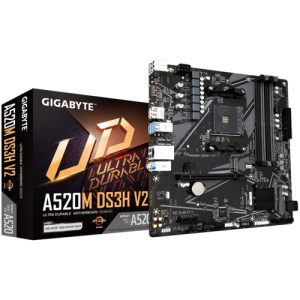

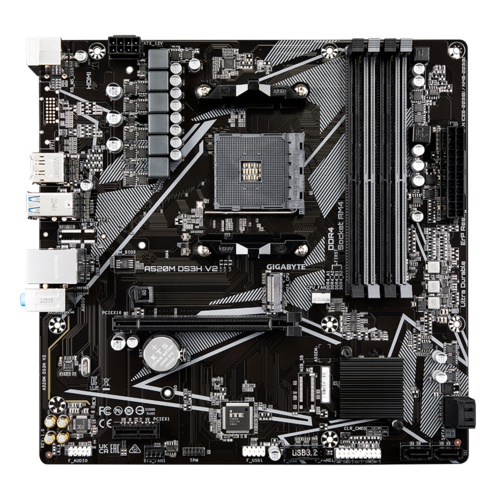

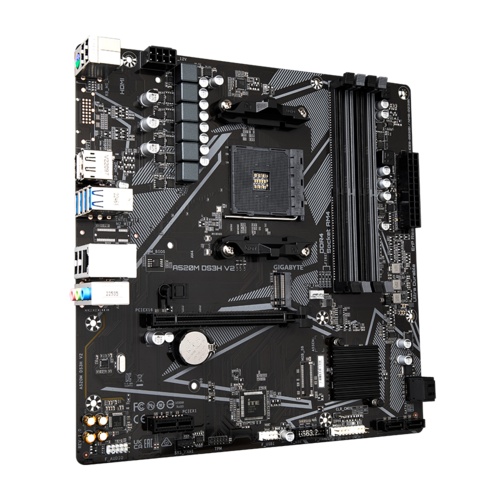

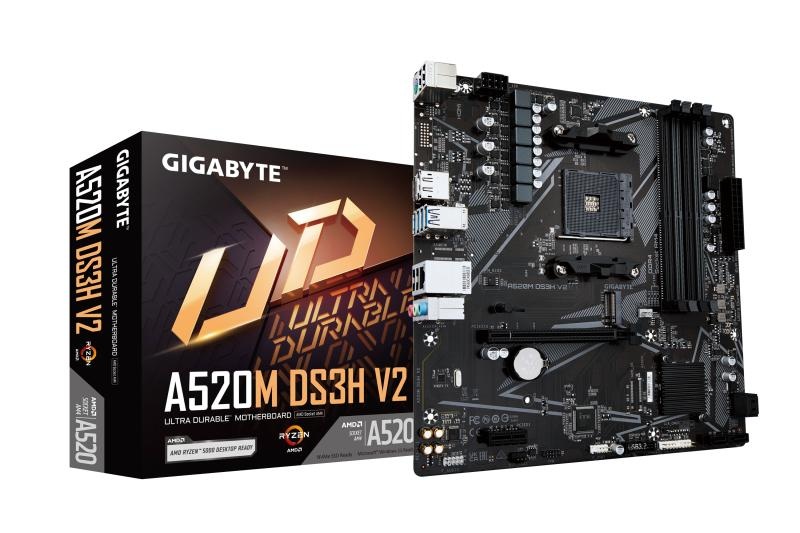

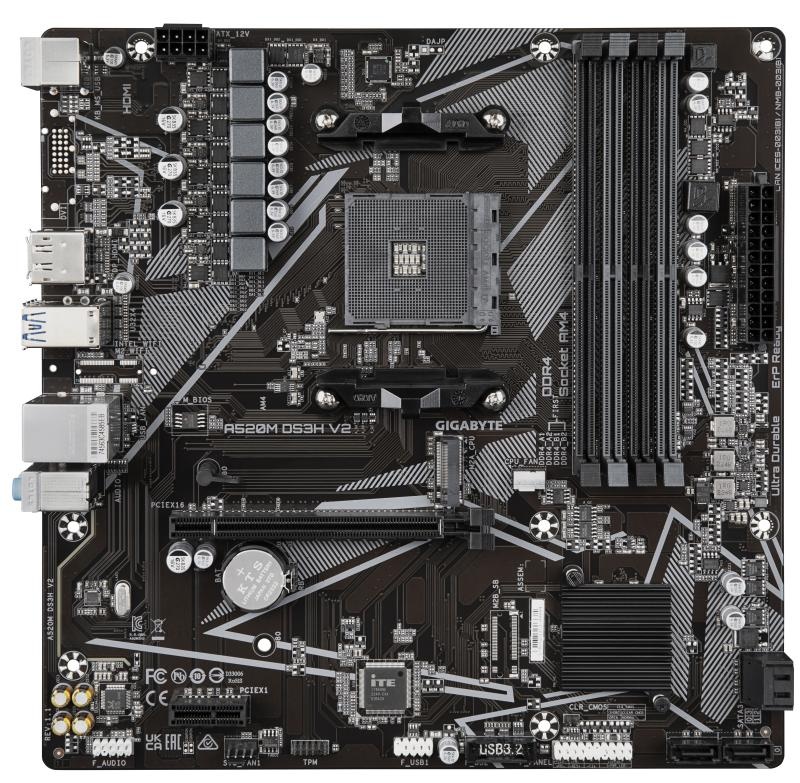

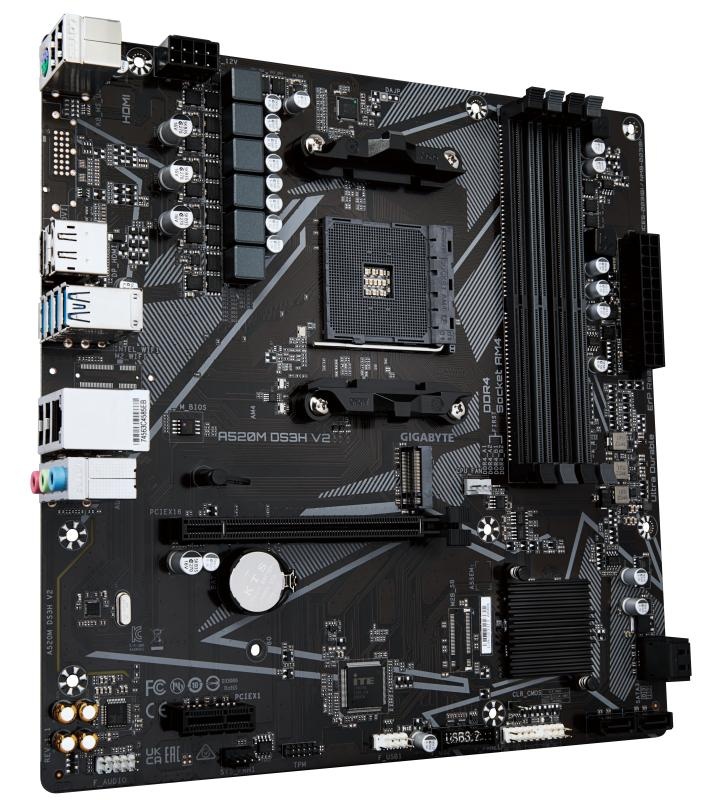

Placa de baza Gigabyte A520M DS3H V2 AM4

321,99 RON (TVA inclus) 365,77 RON pret valabil pana la 01 oct.
Plata card comison 0! Rate 0% dobanda plata card de cumparaturi!
Cod produs SKU A520M DS3H V2
EAN 4719331854690
Produsul nu mai este disponibil in magazinul nostru.
Adauga la Favorite

Descriere

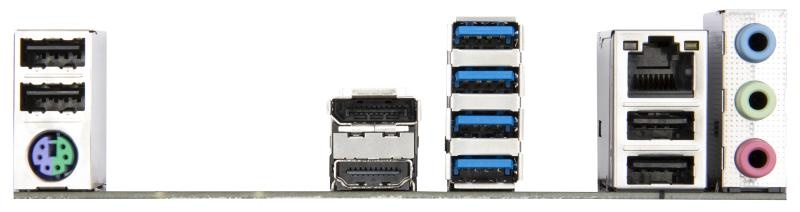

Placa de baza GIGABYTE A520M DS3H V2 AM4, 4x DDR4, 1x DP 1x HDMI, 1 PCIE x16 1x PCIE x1, 1x M.2, 4x SATA 6gb/s

Detalii

SKU
A520M DS3H V2
EAN
4719331854690
Categorii
Placi de baza
Brand
GIGABYTE
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
No
Onboard-CPU
No
Product colour
Black
Component for
PC
Warranty period
3 year(s)
Windows operating systems supported
Windows 10 x64
Ethernet interface type
Gigabit Ethernet
Memory channels
Dual-channel
Country of origin
China
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
PCI Express x1 (Gen 3.x) slots
2
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Processor manufacturer
AMD
USB 2.0 ports quantity
2
Microphone in
Yes
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
HDCP
Yes
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of M.2 (M) slots
1
USB 2.0 connectors
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Maximum number of SMP processors
1
Number of SATA II connectors
0
Cables included
SATA
Cooling type
Active
PCI Express x16 (Gen 3.x) slots
1
Total number of SATA connectors
4
Maximum resolution
5120 x 2880 pixels
Number of displays supported
3
Digital audio optical out
1
DisplayPort version
2.0
Drivers included
Yes
DVI-D ports quantity
1
Discrete graphics support
Yes
Audio Chip
Realtek ALC887
PC health monitoring
CPU, LED, Power supply, Temperature, Voltage
Number of Parallel ATA connectors
0
Power fan connector
Yes
Number of EATX power connectors
1
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Bundled software
Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility
Package weight
810 g
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum internal memory supported by processor
128 GB
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
USB connector type
USB Type-A
Width
24.4 mm
Garantie (luni)
36
